HC4 – NG versions: 10 different intensification factors
PIN: 20 – 207 bar
PH: 500 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) i (intensification)
Mounting: NG6 (D03) and NG10 (D05) stacking manifold system
Weight: NG6: 6.0 kg. / NG10: 6.2 kg.
The HC4-NG is a variant of the HC4 providing high-pressure on the A port. It is designed for use in NG6 (D03) or NG10 (05) stacking manifold systems. The HC4-NG is ideal for use in applications where a higher volume of high-pressure fluid is required. The HC4-NG is a compact unit, but it delivers up to 16.3 l/min outlet flow.
Like the HC4, it raises supplied pressure and automatically compensates for consumption of oil to maintain the high pressure. Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure.
|Max. intensified outlet flow|
|Max. inlet flow|
The basic operation is illustrated in the function diagram. The oil is fed through the connecting plate to the control valve to the IN port of the HC4-NG flowing freely through check valves KV1, KV2 and DV to the high-pressure side H.
From the high-pressure side H, oil is fed to port A on the connecting plate. In this condition maximum flow through the booster is achieved giving a fast-forward function. When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

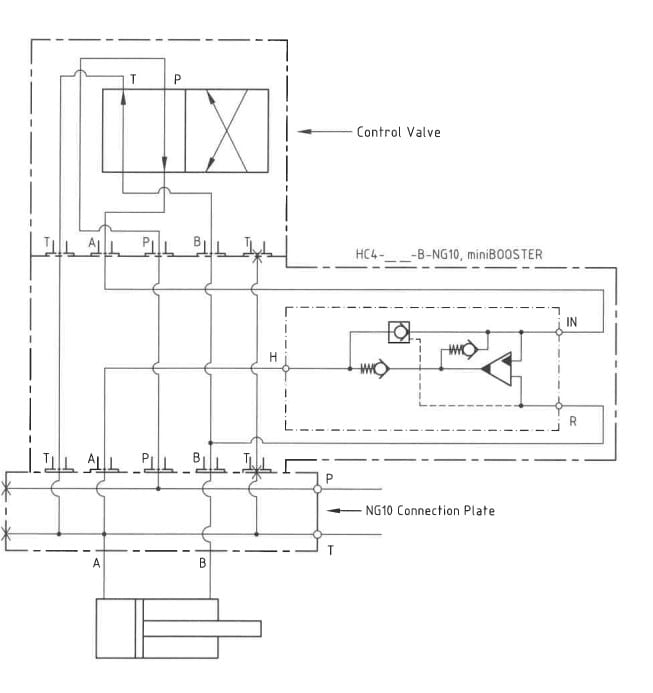

Function diagram HC4-NG6
Function diagram HC4-NG10
Dimension drawing 4-136-00
Dimension drawing 4-127-00
Fluids and materials
Additional information is available on the website under Products → General specifications.
Ordering an HC4-NG
Ordering example of an HC4 – NG with i = 4.3, DV incorporated and NG6 (D03) manifold: HC4 – 4.3 – B – NG6
The G-model is available in 2 variants, when ordering please specify accordingly:
- Dynamic – low hysteresis: Ordering example of an HC4-NG with i = 4.3 RV incorporated and NG6 (D03) manifold: HC4 – 4.3 – G – NG6
- Fail safe – high hysteresis: The RV valve opening ratio is to be determined on individual basis. Contact our technical support. Ordering example of an HC4-NG with i = 4.3 RV with opening ratio x.x incorporated and NG6 (D03) manifold: HC4 – 4.3 – G – x.x – NG6
- Select factor
- See flow rate table
- Select type
- A = without DV
- B = with DV
- G = with proportional valve
- Select manifold
